File discrepancy between BB and Windows

[DGDanforth]

I can't believe what I am seeing! Its such a glaring difference I must be doing something wrong.
When I open Windows explorer to see files I am not seeing the same files as when I do an open file with BlackBox.
Specifically C:/Windows/System32 and looking at files beginning with "Sys" I see different results.

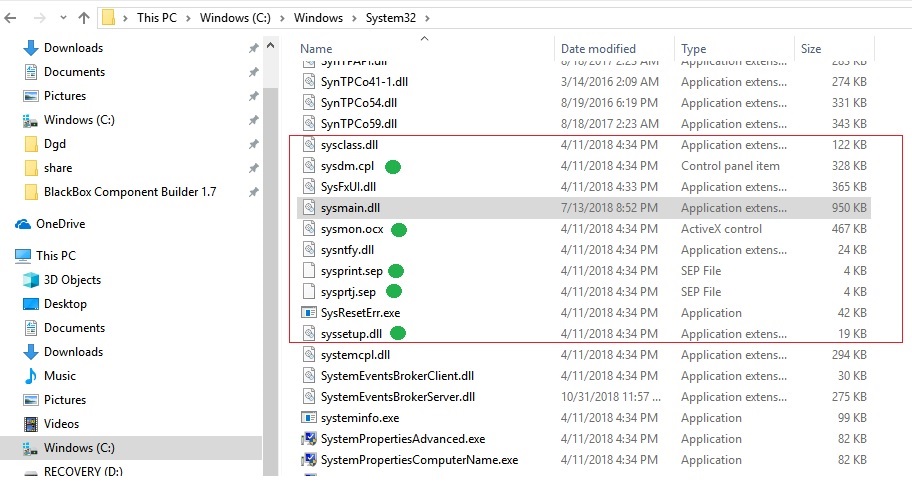

Here is a view

The red rectangle surrounds the files of interest.
The green circles are the files that BB shows. Those without the green circles
are not shown by BB.

You should be able to replicate my results.

NB: I selected All Files(*.*) for BB

[DGDanforth]

I really do want your help.
Below is how the directory appears under BB File->Open and after
navigating to the same location as was done with Windows Explorer.

As you can see the two views (Windows & BB) are different.
Windows has 10 files where as BB has only 5 files'

Why the discrepancy?

[Robert]

I really do want your help.
...
Windows has 10 files where as BB has only 5 files'

Why the discrepancy?

I can't give any help, but I notice something similar with build 1057 under Windows 10.
Windows has 34 files beginning "Sys", BlackBox has 19.

[DGDanforth]

Thank you Robert for showing the "bug" is real.
Doug

I really do want your help.
...
Windows has 10 files where as BB has only 5 files'

Why the discrepancy?

I can't give any help, but I notice something similar with build 1057 under Windows 10.
Windows has 34 files beginning "Sys", BlackBox has 19.

[luowy]

This is a "WOW" issue, it occurs when the win32 app is running on win64 OS.
you can get an answer form stackoverflow.
https://stackoverflow.com/questions/95956/findnextfile-fails-on-64-bit-windows

luowy

[DGDanforth]

This is a "WOW" issue, it occurs when the win32 app is running on win64 OS.
you can get an answer form stackoverflow.
https://stackoverflow.com/questions/95956/findnextfile-fails-on-64-bit-windows

luowy

Thank you luowy.

File System Redirector
05/30/2018
2 minutes to read
The %windir%\System32 directory is reserved for 64-bit applications on 64-bit Windows. Most DLL file names were not changed when 64-bit versions of the DLLs were created, so 32-bit versions of the DLLs are stored in a different directory. WOW64 hides this difference by using a file system redirector

What a mess! I just stumbled upon the inconsistency when looking for a dll.

Doug

[luowy]

that means the "C:\Windows\System32" is a special dir,
e.g. though win32app and win64app both have a "C:\Windows\System32\Kernel32.dll" files,
but they are not a same file.
If win32app wants to see all the files in that dir which win64app can see, two new functions must be used:

Code: Select all

MODULE TestWOWFiles;

   IMPORT Log := StdLog, WinApi, S := SYSTEM;


   (*  https://stackoverflow.com/search?q=findfirstfile+system32  *)
   (*  https://stackoverflow.com/questions/95956/findnextfile-fails-on-64-bit-windows  *)



   TYPE
      HMODULE = WinApi.HMODULE;
      PVOID = WinApi.PtrVoid;
      BOOL = WinApi.BOOL;
(*
   BOOL WINAPI Wow64DisableWow64FsRedirection(
           _Out_ PVOID *OldValue
      );

   BOOL WINAPI Wow64RevertWow64FsRedirection(
           _In_ PVOID OldValue
      );
*)

   VAR
      Wow64DisableWow64FsRedirection: PROCEDURE (VAR OldValue: PVOID): BOOL;
      Wow64RevertWow64FsRedirection: PROCEDURE (OldValue: PVOID): BOOL;



   PROCEDURE GetProcAddress (IN dll, pname: ARRAY OF SHORTCHAR; VAR adr: INTEGER);
      VAR h: HMODULE;
   BEGIN
      h := WinApi.GetModuleHandleA(dll); adr := 0;
      IF h # 0 THEN
         adr := S.VAL(INTEGER, WinApi.GetProcAddress(h, pname));
      END;
   END GetProcAddress;


   PROCEDURE Init ();
   BEGIN
      GetProcAddress("KERNEL32.DLL", "Wow64DisableWow64FsRedirection",
         S.VAL(INTEGER, Wow64DisableWow64FsRedirection));
      GetProcAddress("KERNEL32.DLL", "Wow64RevertWow64FsRedirection",
         S.VAL(INTEGER, Wow64RevertWow64FsRedirection));
   END Init;


   PROCEDURE Exist(IN fname: ARRAY OF CHAR): BOOLEAN;
   BEGIN
      RETURN WinApi.GetFileAttributesW(fname) # -1;
   END Exist;

   (* pre: copy  sysclass.dll from system dir to Test\tmp *)

   PROCEDURE Check* ();
      VAR old, res: INTEGER;
   BEGIN
      Log.String("win32"); Log.Ln;
      Log.Bool(Exist("C:\Windows\System32\Kernel32.dll")); Log.Ln;(* true*)
      Log.Bool(Exist("C:\Windows\System32\sysclass.dll")); Log.Ln;  (*false*)
      Log.Bool(Exist("Test\tmp\sysclass.dll")); Log.Ln;                         (* true*)
      Log.Bool(Exist("C:\Windows\System32\sysdm.cpl")); Log.Ln;(* true*)


      res := Wow64DisableWow64FsRedirection(old);
      IF res # 0 THEN
         Log.String("win64 "); Log.Ln;
         Log.Bool(Exist("C:\Windows\System32\Kernel32.dll")); Log.Ln;(* true*)
         Log.Bool(Exist("C:\Windows\System32\sysclass.dll")); Log.Ln; (* true*)
         Log.Bool(Exist("Test\tmp\sysclass.dll")); Log.Ln;(* true*)
         Log.Bool(Exist("C:\Windows\System32\sysdm.cpl")); Log.Ln;(* true*)
         res := Wow64RevertWow64FsRedirection(old);
         IF res == 0 THEN Log.String("error2!"); Log.Ln; END;
      ELSE
         Log.String("error!"); Log.Ln;
      END;
   END Check;


BEGIN
   Init();
END TestWOWFiles.

luowy

[DGDanforth]

Here is what I get on my Windows 10 64 bit HP laptop

win32
$TRUE
$FALSE
$FALSE
$TRUE
win64
$TRUE
$TRUE
$FALSE
$TRUE

which differs from your comments for the procedures

Log.String("win32"); Log.Ln;
Log.Bool(Exist("C:\Windows\System32\Kernel32.dll")); Log.Ln;(* true*)
Log.Bool(Exist("C:\Windows\System32\sysclass.dll")); Log.Ln; (*false*)
Log.Bool(Exist("Test\tmp\sysclass.dll")); Log.Ln; (* true*)
Log.Bool(Exist("C:\Windows\System32\sysdm.cpl")); Log.Ln;(* true*)


res := Wow64DisableWow64FsRedirection(old);
IF res # 0 THEN
Log.String("win64 "); Log.Ln;
Log.Bool(Exist("C:\Windows\System32\Kernel32.dll")); Log.Ln;(* true*)
Log.Bool(Exist("C:\Windows\System32\sysclass.dll")); Log.Ln; (* true*)
Log.Bool(Exist("Test\tmp\sysclass.dll")); Log.Ln;(* true*)
Log.Bool(Exist("C:\Windows\System32\sysdm.cpl")); Log.Ln;(* true*)

luowy

[luowy]

do you notice this comment?

Code: Select all

(* pre: copy  sysclass.dll from system dir to Test\tmp *)

that demonstrate the System32 is a special directory;

what I understand:
it is not a BB bug, it is a feature of WoW64:
that make win32 and win64 can use same name sysytem library,but they are actually not same file!
e.g. Kernel32.dll will be loaded by win32 app, also loaded by win64 app, but they are different file!

the explorer is win64 app, so it show different contents from BB(Win32app) ;

outside of the system32 directory, win32app and win64app will show same contents,
if you want to check the win64's system32 contents with BB, you can refer to the example I gave;

luowy
